How to show Satellite, SST, and Radar image Maps

How it works...
Hurrtrak Online users are able to plot a storm on certain satellite, Sea surface temperature and Radar images. They can be selected from the Satellite image drop down list on any of the "fixed map" tabs. The source for these maps are from 3rd party free internet web sites.

How to select...

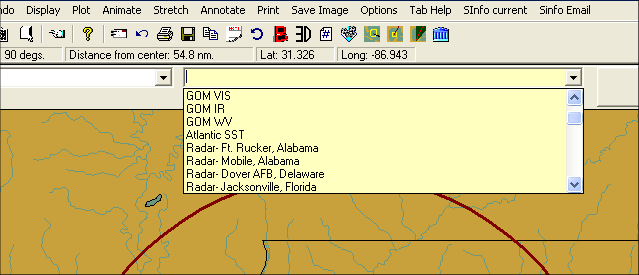

These images are selected from any of the three Fixed Tracking Charts by selecting the dropdown just above the tracking chart image.  i.e. you must first be looking at a tracking chart image before they can be selected.  See below.

Sizes:
They come is miscellaneous sizes and can be scrolled if the image is larger than your display area.

Misc:

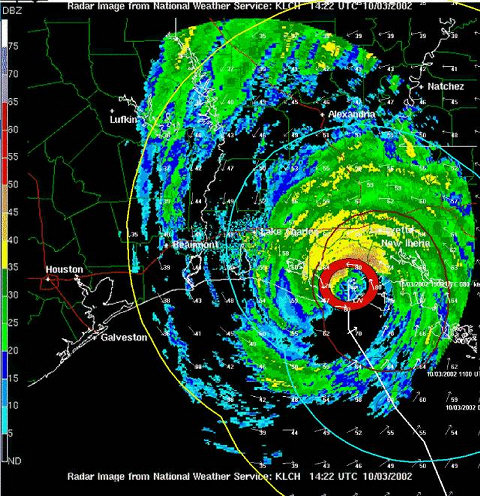

These images can be quite large (300K) so a fast internet connection is recommended. Some examples are shown below..

NOTE: A Pan or Zoom action on these types of maps will result in a standard map (not a satellite or radar image) being drawn at the select pan or zoom level.
