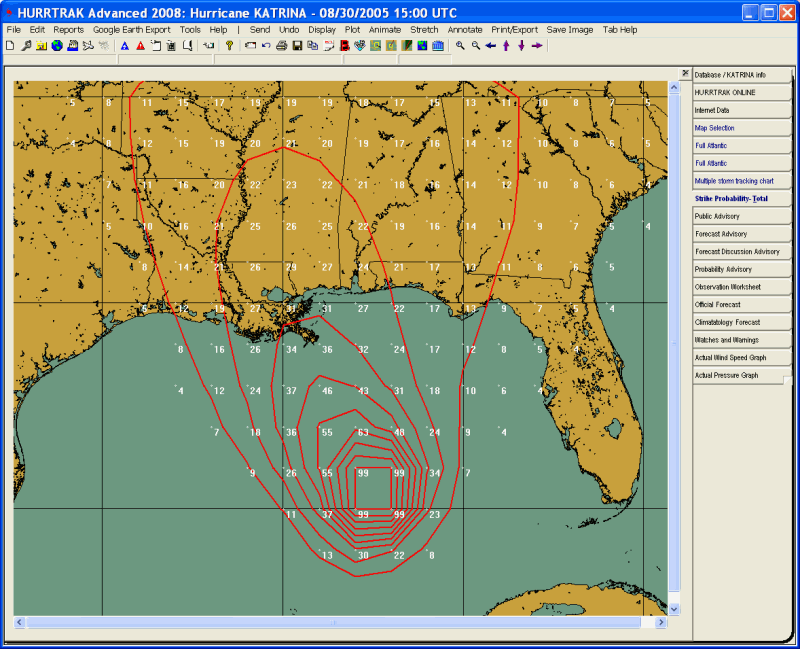

Description:  This tab displays 2 types of probabilities. It graphically displays either the total, next 24 hours, 24-36 hour period, 36-48 hour period or 48-72 hour period strike probabilities OR the total 34 knot, 50 knot or 64 knot wind probabilities… on a tracking chart. The values are contoured as set in the Strike/Wind Probabilities Option.  Additional storm tracking and analysis functions are available from here.

Tab Created by: Map Select Tab, Variable Track Chart Tab, Favorite Tracking Chart Tab

Tab Close Allowed: Yes

Functions Available:

Menu/Toolbar:

Standard System Menu Functions

Send

Undo

Display

Plot

Stretch

Annotate

Print

Save Image

TOOLBAR Options Available:

Plus Sign -  This option zooms in and re-plots the map.

Minus Sign - This option zooms out and re-plots the map.

Bullseye - This option centers the map on the storm at the current zoom level.

Left Arrow - This option pans the map to the west and re-plots the map.

Up Arrow - This option pans the map to the north and re-plots the map.

Down Arrow -  This option pans the map to the south and re-plots the map.

Right Arrow -  This option pans the map to the east and re-plots the map.

Miscellaneous:

The user can zoom in by rubber banding an area on the screen. Other pan and zoom options are available by right clicking anywhere on the map image.
