Location/County/Zip Hourly Detail Report Tab

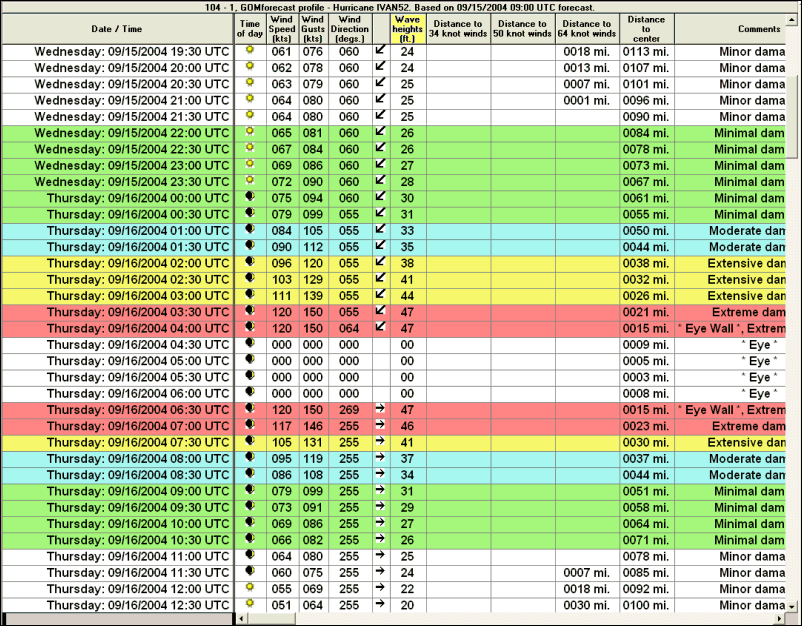

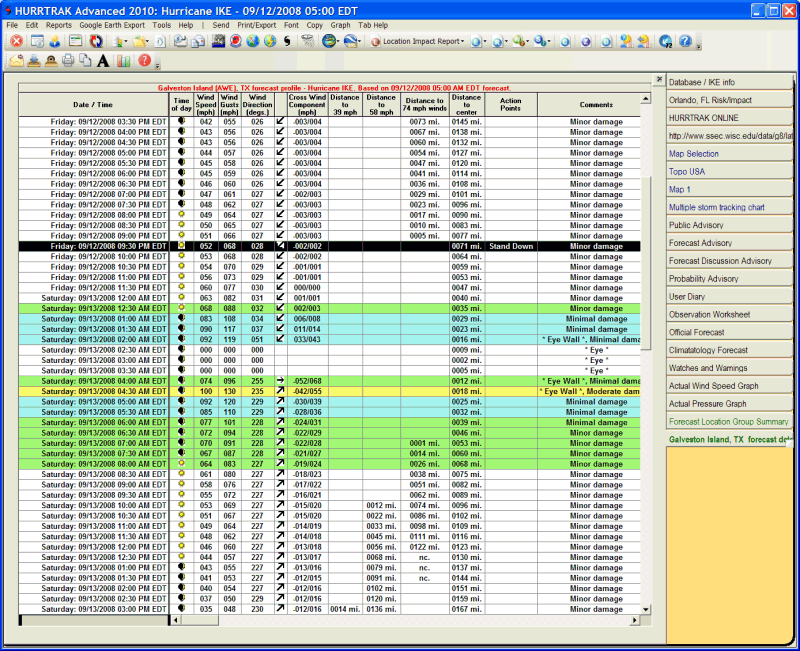

Description:  This tab displays the hourly detail report for locations, counties and zip codes. When a location, county or zip code is selected, the system examines the actual storm characteristics for every hour of the storm's life making a determination of how this location was affected at each hour. The result is a report indicating the wind speed (sustained/gusts) and wind direction conditions for this location throughout the period along with any other pertinent information such as astronomical tide height, distance from 34, 50, 64 knot wind areas and distance from center. The last column indicates whether the location was affected by the eye and/or eye wall.  In addition, if the cross wind flow angle has been set for this location, the cross wind component is included. If advanced wind estimation (AWE) is on, it will be indicated in the report header. The 2nd sample image above is included to show an example of a report for an oil platform during Hurricane Ivan. Note for this type of “offshore” location, wave height is also included on the report.



Tab Created by: Selecting Display Hourly Details from the Location Group, County or Zip Code summary report.



Tab Close Allowed: Yes



Functions Available:

Menu/Toolbar:

Standard System Menu Functions



Send - Sends the report via Email either as an HTML attachment or imbedded text



Print

Print Preview - Previews the printed output on your screen

Direct to Printer - Prints the output directly to the designated printer

Export to HTML

Export to PDF

Export to Text (Delimited)

Export to EXCEL - Exports the output to Microsoft EXCEL format.



Font - Allows the user to modify the text font properties for this report.



Copy - Copies the contents of the report to the windows clipboard.



Graph

Graph Wind Profile - Displays a graph of a the wind speed for this location

Graph Flood Profile (1 or 3 hour total) - Displays a graph of the flood index for this location



Toolbars: See Appendix Section for more information.



Tips:

- The report rows are color coded based on the wind speed for that time.

- Damage comments are located in the comments column (last)
